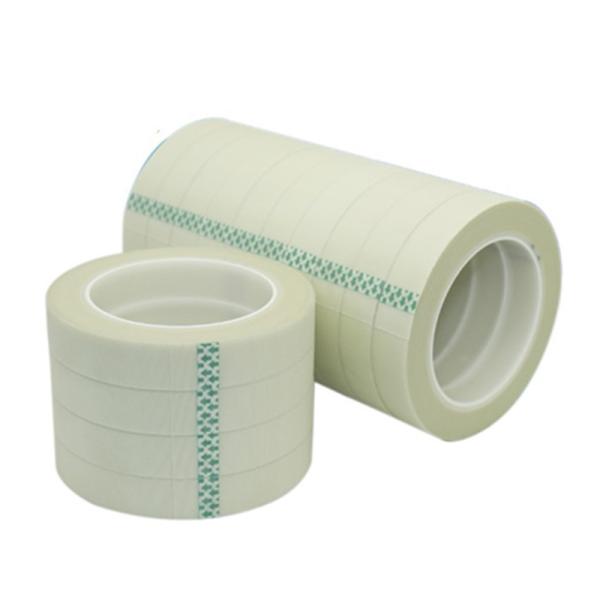

Heat Resistant Insulation Silicone Tape Double Sided H Grade

  • 1
  • 2
  • 3

Price : based on size and quantity

Delivery Time : 20 working days

Tensile strength : ≥210 N/10mm

Elongation : ≥ 3%

Grade : H grade

Adhesive type : Silicone adhesive

Base material : Imported glass cloth

Total thickness : 0.18mm

Base cloth thickness : 0.12mm

Adhesion strength to steel plate : ≥3.8 N/10mm

Payment Terms : T/T

Model Number : 6361

Place of Origin : CHINA

MOQ : 500m2

Supply Ability : 50,000m2 per month

Brand Name : UNTEX

Releasing paper : No

BDV : ≥2.5KV

Packaging Details : Export cartons and pallets

Contact Now

Heat Resistant Insulation Silicone Tape Double Sided H Grade
Product Overview

The Glass Cloth Tape is made of imported E-glass cloth coated with silicone adhesive. It offers excellent heat resistance, electrical insulation, and mechanical strength, making it suitable for transformer coils, motor windings, lithium batteries, and other high-temperature insulation applications.

Technical Parameters
Total Thickness 0.18mm
Thermal Class H Class
Advantages
High Temperature Resistance

Continuous operating temperature up to 180°C and short-term resistance up to 200°C.

Strong and Durable

High tensile strength provides secure coil wrapping and long service life.

Reliable Adhesion

Silicone adhesive ensures stable bonding under high-temperature conditions.

Excellent Insulation

Provides reliable electrical insulation for Class H applications.

Applications
  • Transformer coil insulation
  • Motor winding wrapping
  • Lithium battery insulation
  • High-temperature masking
  • Thermal shielding protection
Frequently Asked Questions
What is glass cloth tape used for?

It is used for electrical insulation, transformer winding, motor coils, and battery protection.

Is it suitable for high temperatures?

Yes. It can operate continuously at 180°C and withstand short-term exposure up to 200°C.

Can it be used for transformer insulation?

Yes. It is designed for transformer and motor insulation applications requiring Class H heat resistance.
