Brand Name : No

Model Number : F150-G-W

Certification : RoHS

Place of Origin : CHINA

MOQ : 6000m

Price : by quote

Payment Terms : L/C, T/T

Supply Ability : 50,000m2 per month

Delivery Time : 30 working days

Packaging Details : Export carton case

Resin type : Polyester resin

Base material : E glass fiber

Thermal grade : F class

Width : 10/15/20/25/30/50/60mm

Length : 200m or at buyer's request

Total thickness : 0.3mm

Contact Now

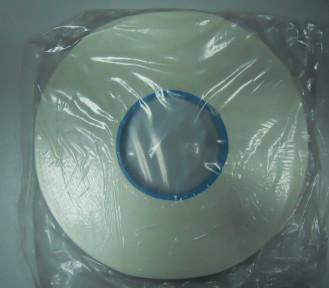

Polyester Resin Impregnated Glass Banding Tape,F Class, 0.3mm Thick, Electrical Insulation, PG Tape

Polyester resin impregated glass banding tape

Type: F150-G-W

Item	Unit	Standard value
Type		F150-G-W
Thermal class		F (155°C)
Volatile Content	%	≤2
Loss of weight at calcination	%	26±2
Soluble resin content	%	≥90
Tensile strength before curing	N/cm	0.2mm ≥1000 0.3mm ≥1500
Maximum pull while banding	N/cm	0.2mm ≥500 0.3mm ≥800
Tensile strength of ringlike sample at room temperature after curing	Mpa	20°C ≥1150
Tensile strength of ringlike sample at working temperature after curing	Mpa	200°C ≥900
Proof tracking index(PTI)	V	≥500
Arc resistance	S	≥160
Dielectric strength	Kv/mm	≥12
Thermosetting		Easy peeling, non-sticky
Loss of tensile strength after soaked in oil	%	≤10
